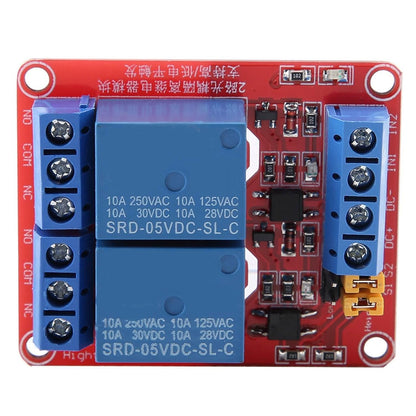

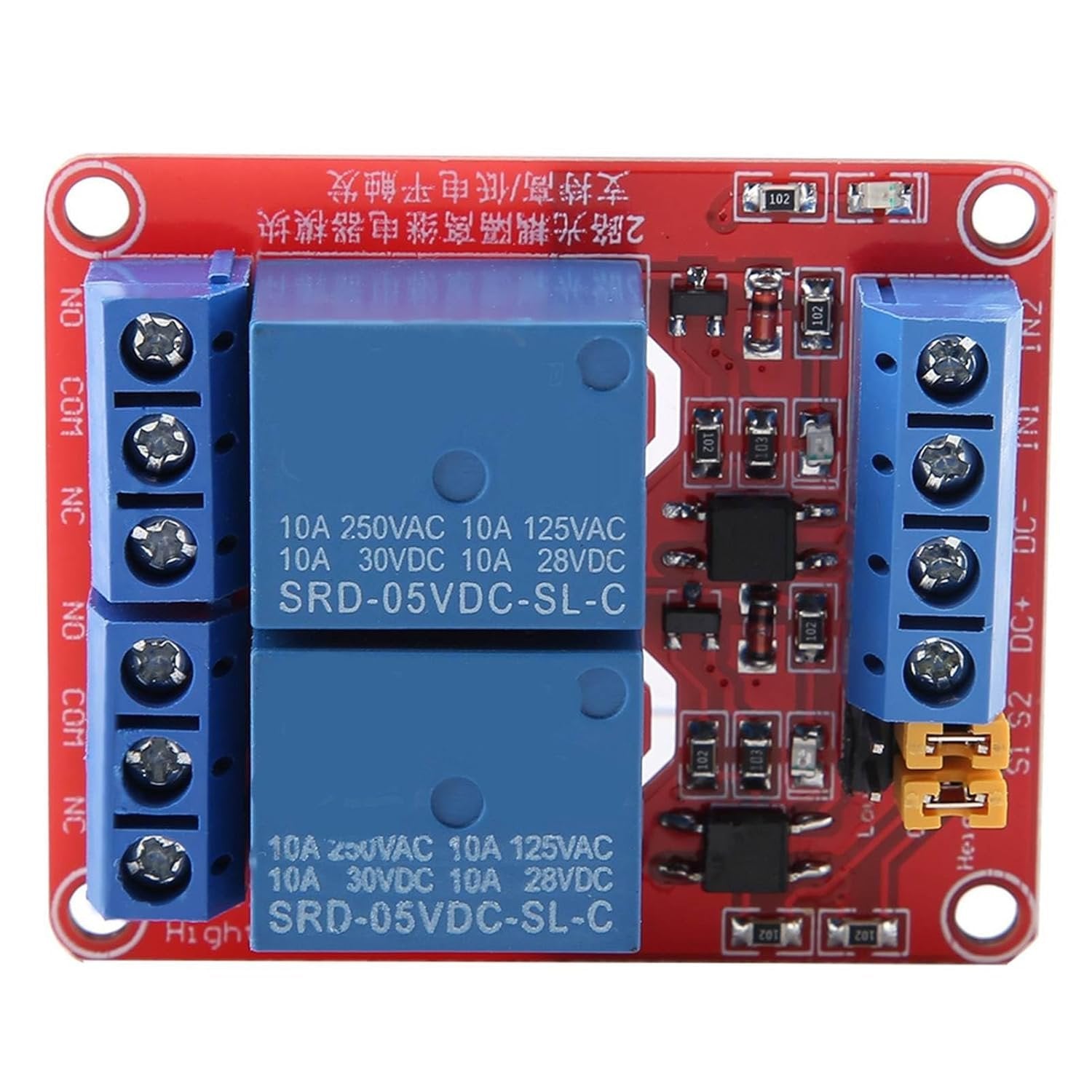

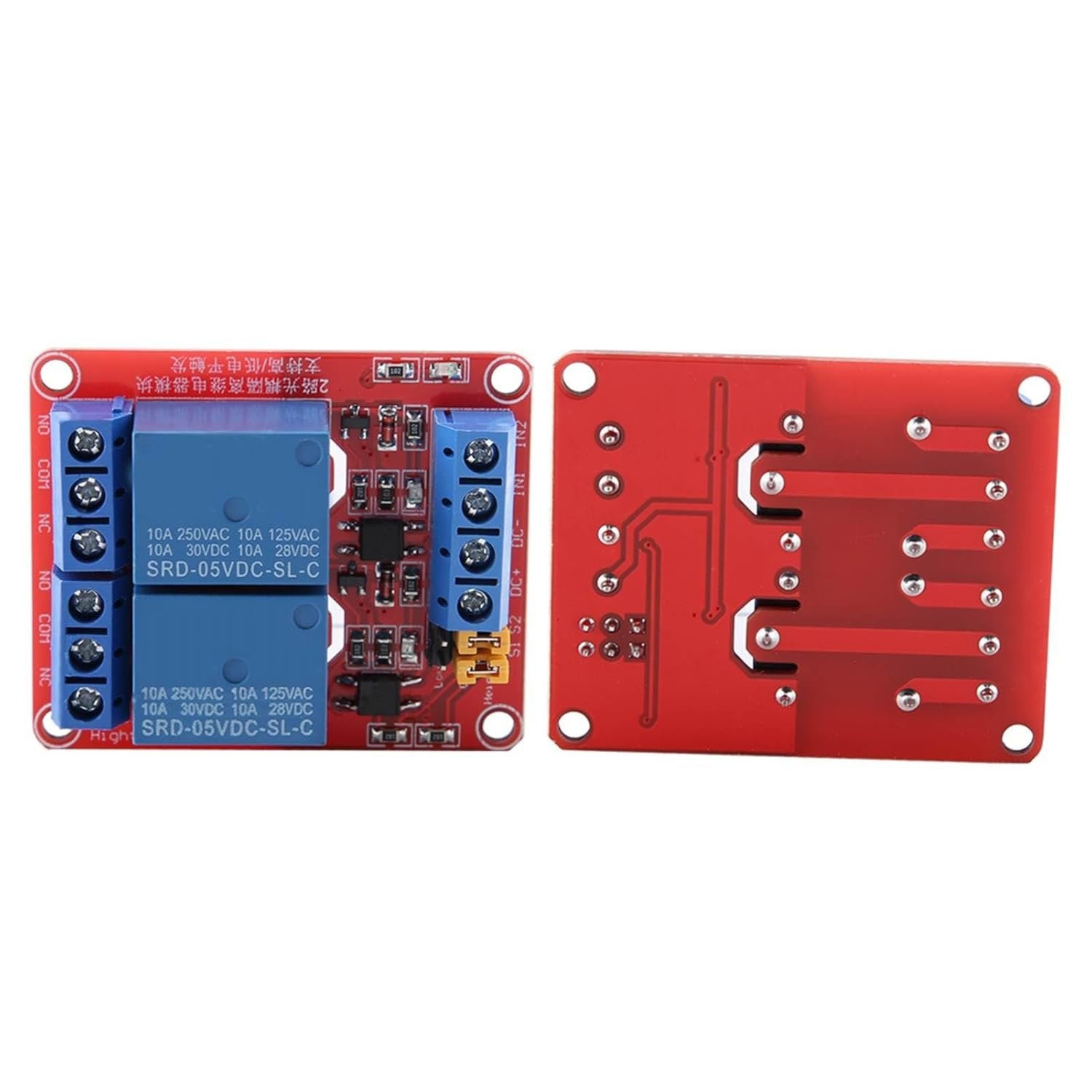

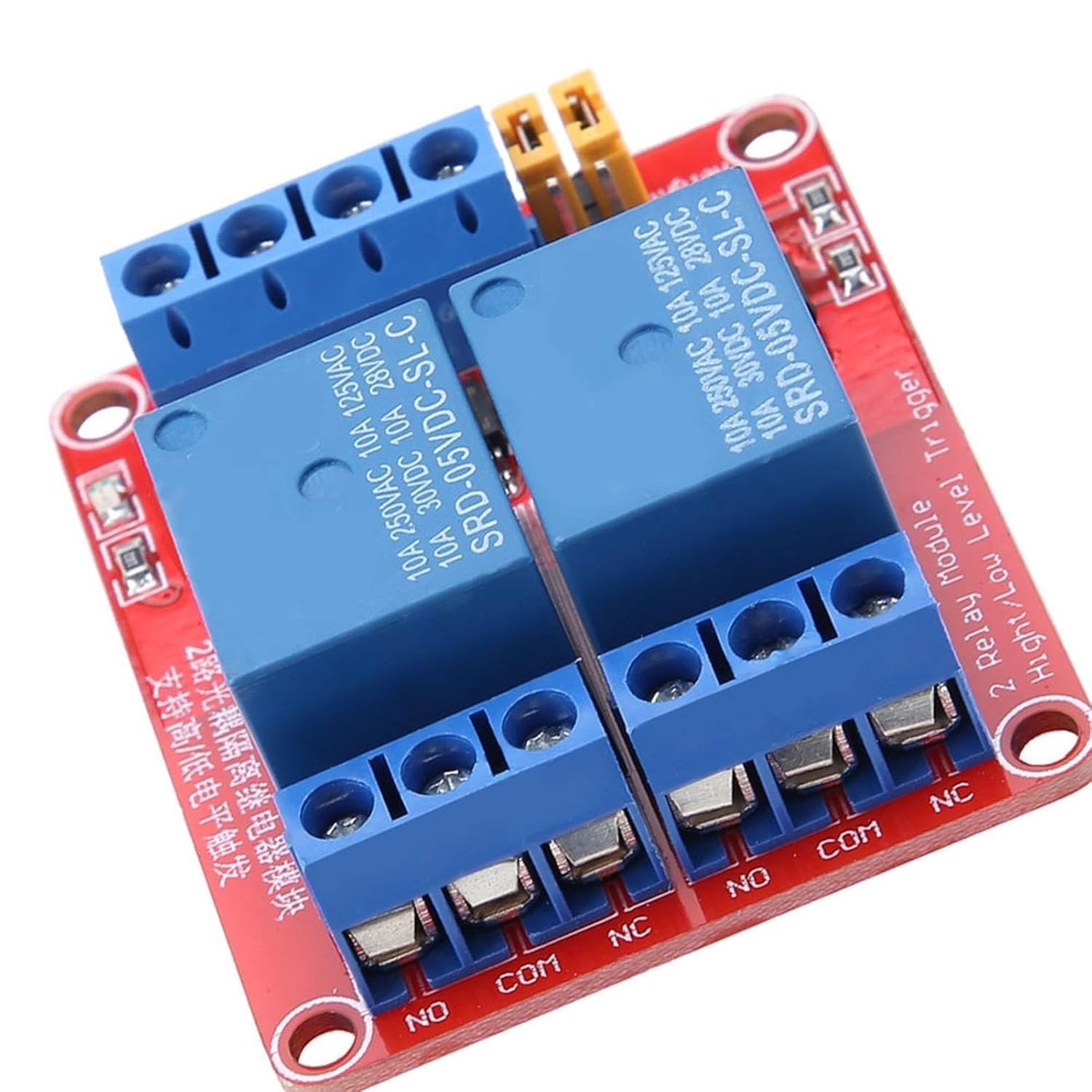

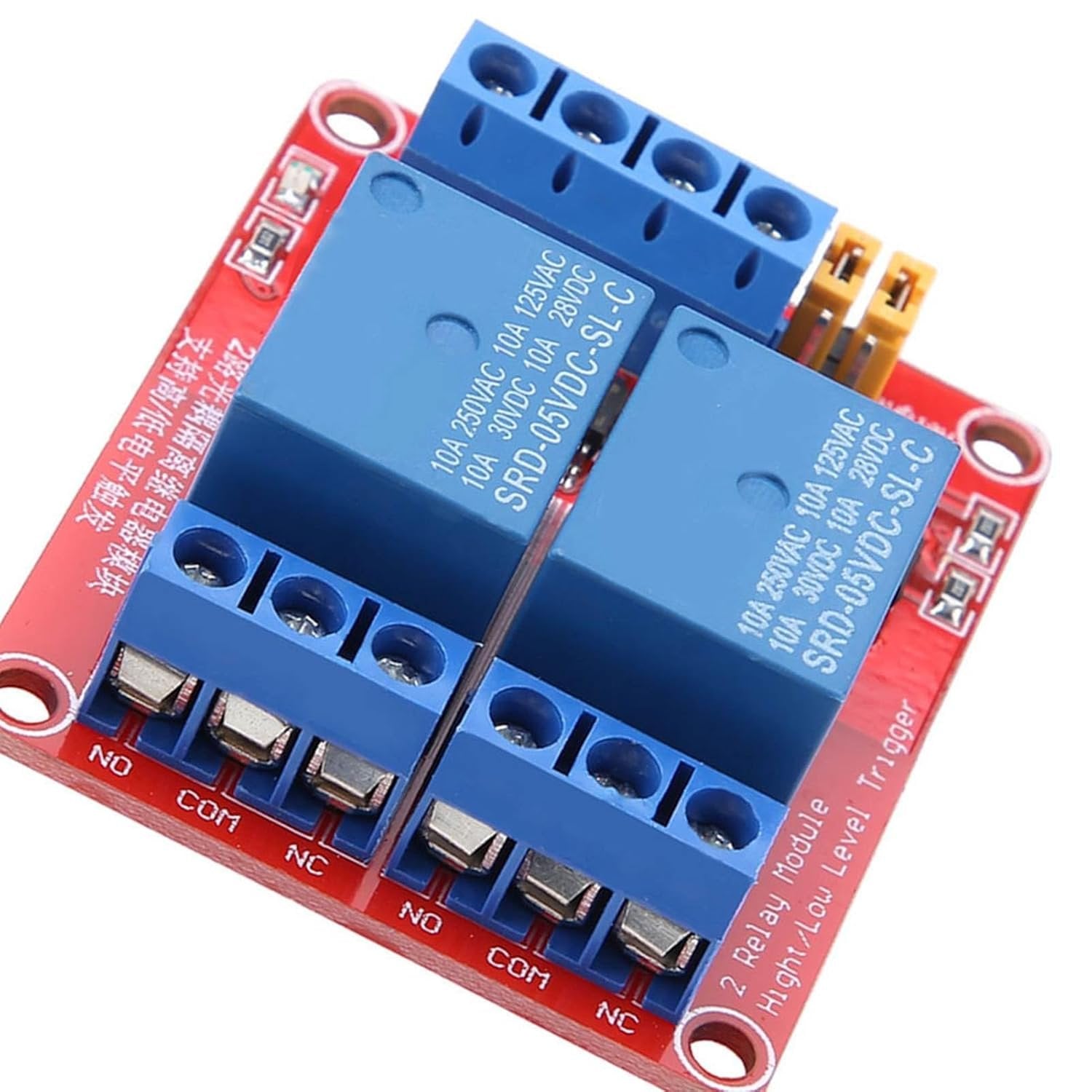

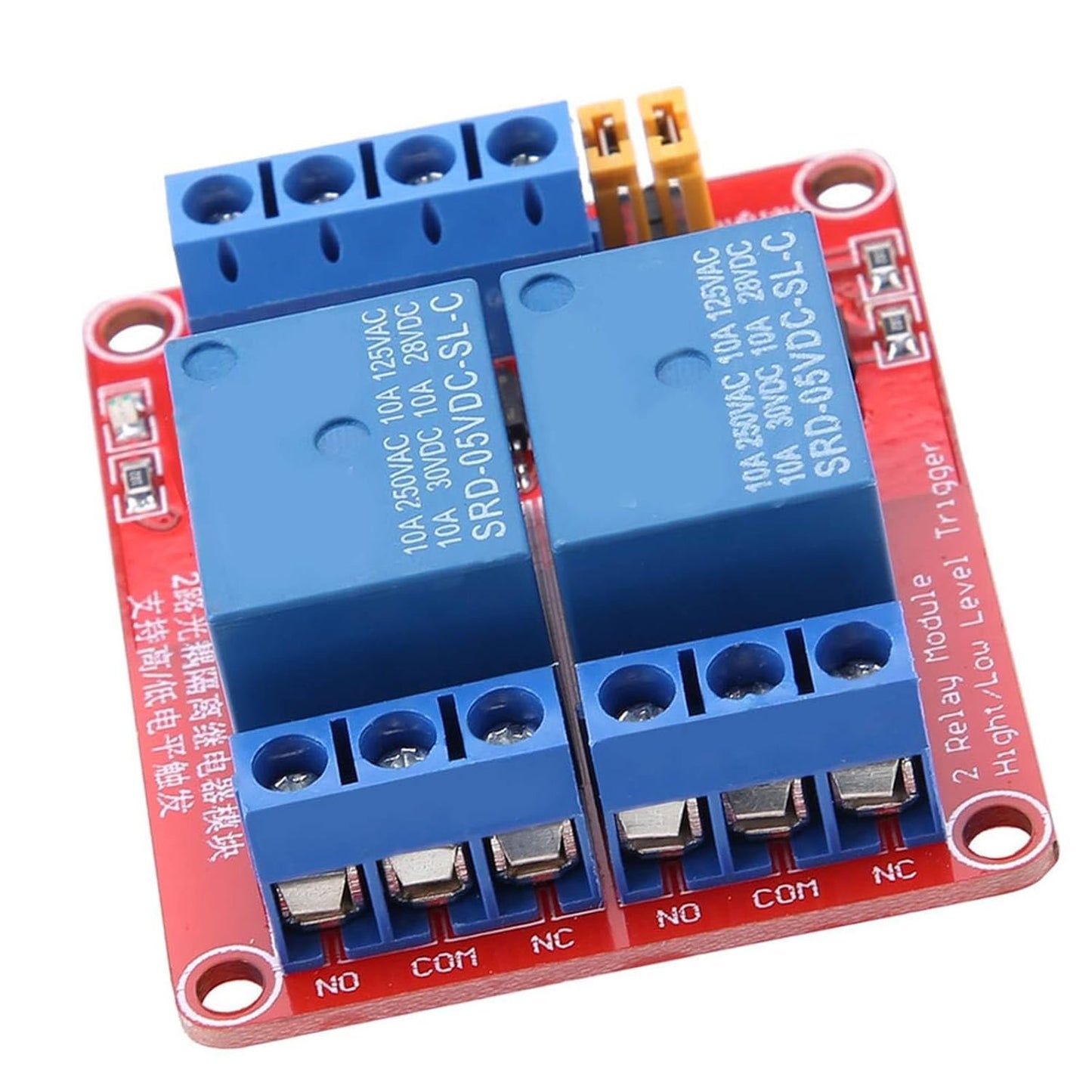

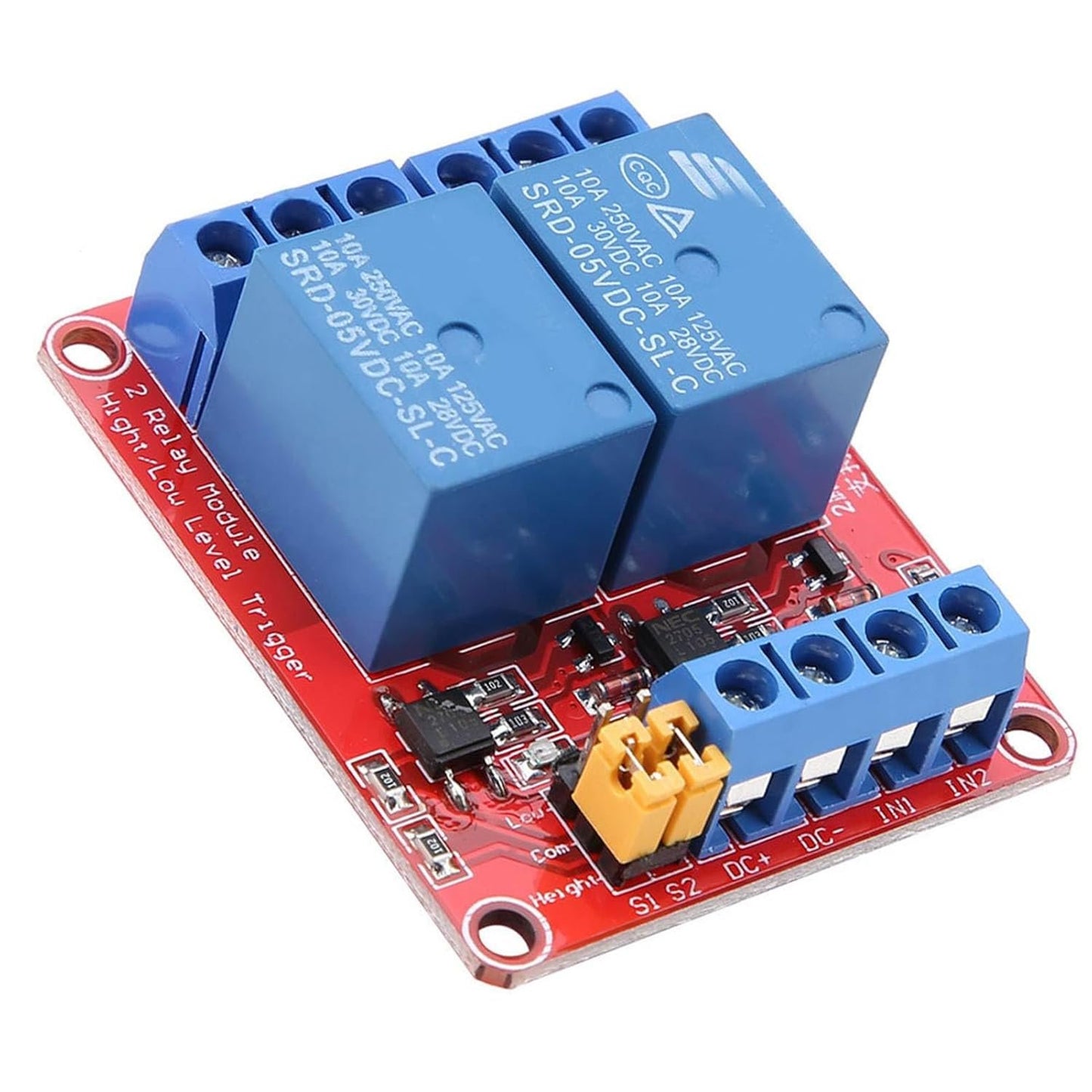

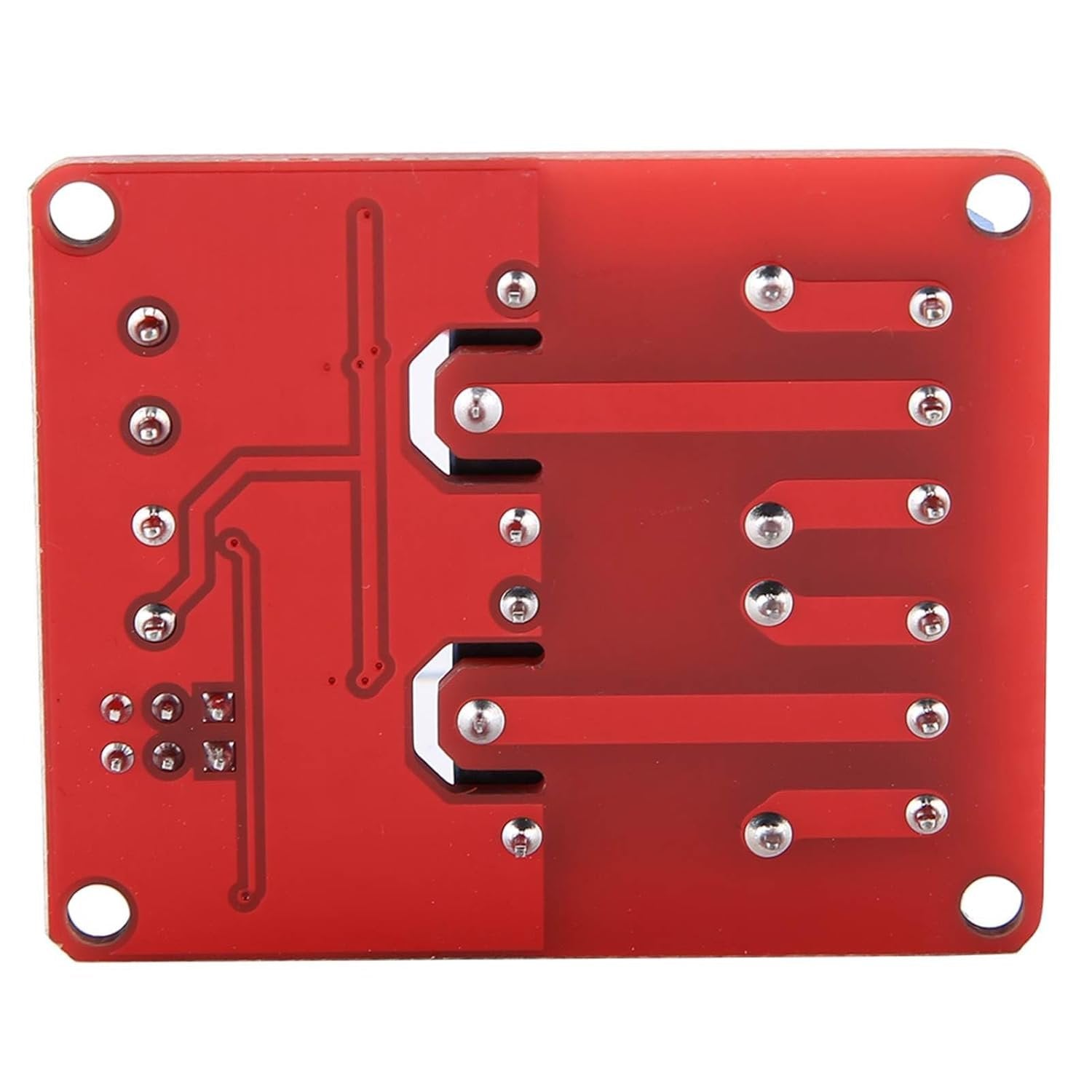

- - - - 1. The module adopts high-quality relays with normal interface and maximum load: AC /10A, DC 30V/10A. 2. Using SMT optocoupler isolation, it has strong driving ability and stable performance; trigger current is 5mA. 3. Modules can be triggered by setting high or low levels through wire jumper. 4. Fault-tolerant design, even if the control line is broken, the relay will not move. 5. The interface design is humanized. All interfaces can be directly connected through the terminal, which is very convenient. Spec: Feature: The module adopts high-quality relays with normal interface and maximum load: AC /10A, DC 30V/10A. Using SMT optocoupler isolation, it has strong driving ability and stable performance; trigger current is 5mA; Modules can be triggered by setting high or low levels through wire jumper. Fault-tolerant design, even if the control line is broken, the relay will not move. The interface design is humanized. All interfaces can be directly connected through the terminal, which is very convenient. Equipped with 4 fixed screw holes, easy to install. Specification: Working voltage: 5V, 12V, 24V(Optional) Max load: AC /10A; DC 30V/10A Channel: 2 Product dimension: 50*41*18.5mm / 2*1.6*0.7in Power light: Green Relay light: Red Board color: Red Package list: 1 * Relay Module Note: Module interface: 1. DC+: Connect the positive pole of the power supply 2. DC-: Connect power supply negative pole 3. IN1:1 signal trigger terminal, can set high or low level control relay suction 4. IN2:2 signal trigger terminal, can set high or low level control relay suction Relay output: 1. NO1: 1 channel relay usually opens the interface. The relay is suspended before suction and short-connected with COM1 after suction. 2. COM1: 1 channel relay common [Optocoupler Isolation] Smt optocoupler provides strong driving ability and stability. [Convenient Interface] Easily connect all interfaces directly for hassle- installation. [Flexible Trigger] Easily set high or low levels for triggering the relay. [High Voltage Support] Ac /10a, dc 30v/10a to meet various needs. [Fault-tolerant Design] Ensures the relay stays put even if the control line breaks.
